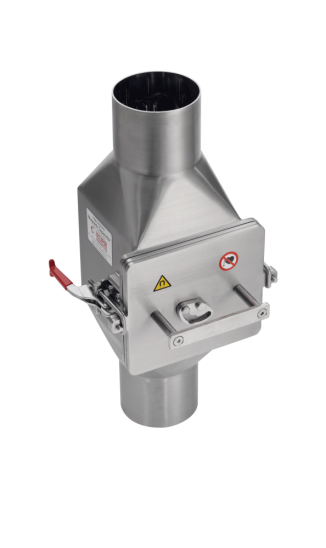

Pneumag Magnetic Separator
Removes ferrous and para-magnetic contamination effectively from pneumatic process lines
- Provides protection for lean/dilute phase conveying lines
- Suitable for positive or negative pressure ±1 Bar
- Includes a double row high intensity magnetic cartridge
- Features an easy clean system to minimise downtime
- Can be installed vertically, horizontally or on an incline / decline
Overview - Pneumag Magnetic Separator
Providing protection against ferrous and para-magnetic contamination of dry powders and granulates

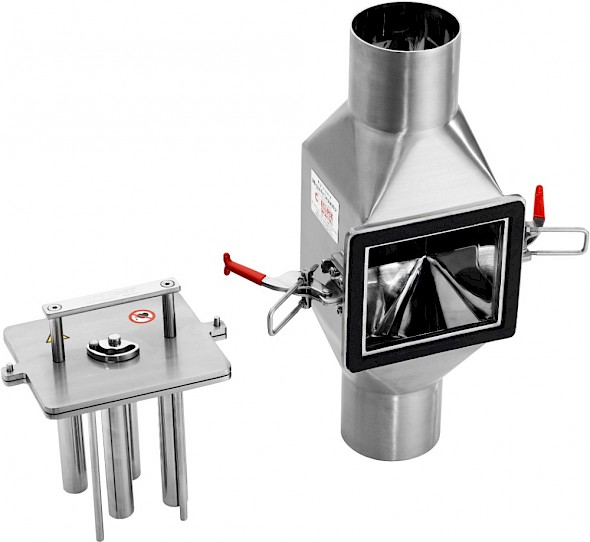

The Pneumag unit contains a double row high intensity magnetic cartridge. It is secured into its housing by quick release toggle clamps, which ensure even pressure is generated around the unique silicon-based metal-detectable seal.

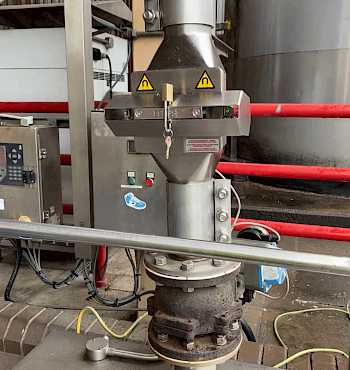

The Pneumag can be incorporated into any form of pneumatic conveying line, from lean to dense phase, and can be installed at any angle from vertical to horizontal. A common installation location is at tanker discharge to inspect incoming materials.
Applications
- Suitable for dry powders and granulates
- Pneumatic or blown feed conveying lines
Features /Benefits
- Metal detectable seal
- Tamper proof guard
- Removes sub-micron sized contaminants
Performance
- Magnetic Performance: 7000, 9000, 10000 (Easy clean), 11000 (Fixed) & 12000 (Fixed) Gauss
- Performance Reading: on tube surface
- Magnet Grade: N35 & N45 – Inspected and confirmed via hysterograph prior to use
- Temperature: -20°C / +60°C
- Pressure: + / - 1 Bar
Construction
Magnetic Material: Rare Earth Neodymium Iron Boron - (NdFeb)
Housing: 316 grade stainless steel
Tubing: 316 grade stainless steel
Other Parts: 316 grade stainless steel
Sealing: Metal detectable silicon rubber – Blue, FDA approved
Surface Finish: Brushed internally / Polished externally to 1.2μm
For pneumatic feed metal detection see GF4000
