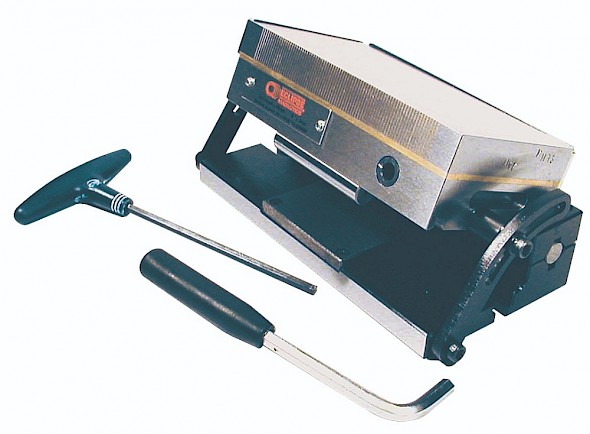

Simple Magnetic Sine Tables Short Lift
Highest quality sine tables for precision grinding and spark erosion.
- Pole pitch 0.5mm brass / 1.5mm steel
- Neodymium (rare earth) magnet system provides strong clamping force.
- Clamping force 80N/CM²
- Tilts on longitudinal axis
- Maximum precision
- Very low height
- Tilt range 0-45 degrees
- Angular accuracy: plus / minus 5 sec
- Baseplate thickness at 0 degrees = 3mm
- Plane parellelism plus / minus 0.005 / 100mm
产品型号
| 产品型号 | Chuck | Top plate length (mm) | Top plate width (mm) | Base lenght (mm) | Base width (mm) | Height at zero (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SSTFP1018 | ERFP1018 | 180 | 100 | 215 | 115 | 73 | 12 |
| SSTFP1325 | ERFP1325 | 255 | 130 | 295 | 195 | 78 | 24 |
| SSTFP1535 | ERFP1535 | 350 | 150 | 390 | 165 | 89 | 39 |
