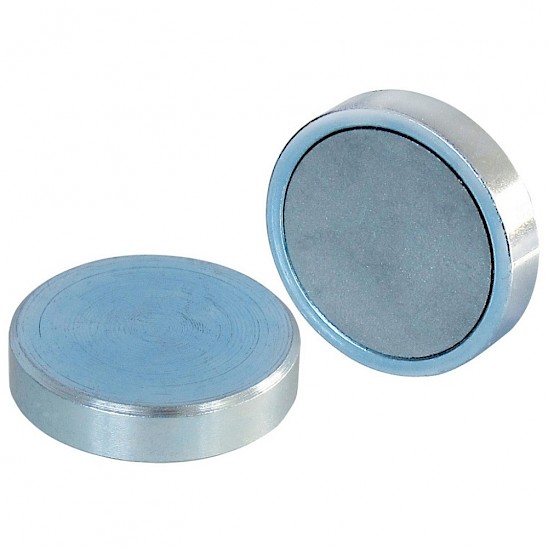

Ferrite Shallow Pot Magnets (Zinc Plated)
Ideal for holding and fixing applications
- For press-fitting applications
- 120° maximum operating temperature
- Excellent resistance to corrosion
- Mild steel pot with zinc plated body
产品概览 - Ferrite Shallow Pot Magnets (Zinc Plated)
The blind ended shallow pot magnet is a pot magnet that is generally wider in diameter than it is tall comprising a magnet (usually a disc magnet) inside a ferromagnetic (mild steel) cup. The ferromagnetic cup has no fixing means (no holes, no threads) - it is blind ended. .
Shallow Pot Magnet for Press Fitting Applications
The blind ended shallow pot magnet is meant for press fitting into an application (so it does not require holes or threads to connect to it). It can sometimes also be used for applications where it clamps to a ferromagnetic surface and it is not meant to be easily removed (it is deliberately meant to be difficult to grip to make it difficult to remove).
产品型号
| 产品型号 | Diameter (mm) | Thickness (mm) | Weight (g) | Pull force (kg) | Units per pack |
|---|---|---|---|---|---|
| E700 | 10 | 4.5 | 2 | 0.4 | 20 |
| E701 | 13 | 4.5 | 3 | 1 | 20 |
| E702 | 16 | 4.5 | 4.5 | 1.8 | 20 |
| E703 | 20 | 6 | 10 | 3 | 10 |
| E704 | 25 | 7 | 19 | 4 | 10 |
| E705 | 32 | 7 | 30 | 8 | 10 |
| E706 | 40 | 8 | 55 | 12.5 | 5 |
| E707 | 50 | 10 | 100 | 22 | 5 |
| E708 | 63 | 14 | 230 | 35 | 1 |
| E709 | 80 | 18 | 485 | 60 | 1 |
