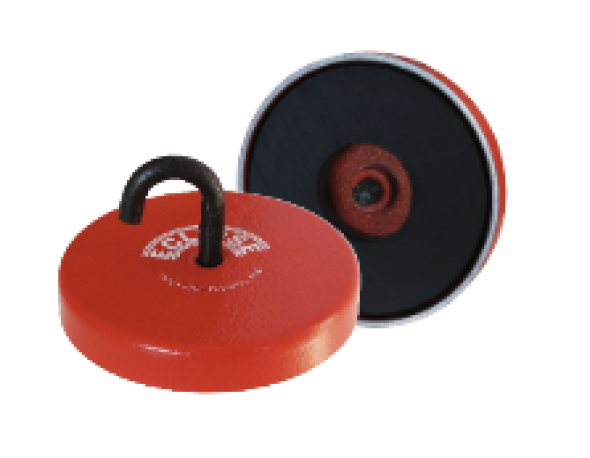

Ferrite Shallow Pot Magnets with Hook
- Max operating temperature 120°c
- Mild steel pot
- With removable hook or removable jack option
- Typical Applications: For height-restricted applications, light lifting, holding, securing and clamping
- Part numbers E890, E891, E892 with hook
- Part numbers E895, E896, E897 with jack
产品型号
| 产品型号 | Dia. (mm) | Thickness (mm) | Thread | Weight (kg) | Pull force (kg) | Units per pack |
|---|---|---|---|---|---|---|
| E890 | 46 | 10.7 | M6 | 0.09 | 6 | 5 |
| E891 | 56 | 10.7 | M6 | 0.13 | 16 | 5 |
| E892 | 66 | 10.7 | M6 | 0.19 | 25 | 5 |
| E895 | 66 | 10.7 | M6 | 0.27 | 25 | 1 |
| E896 | 76 | 12.5 | M6 | 0.30 | 33 | 1 |
| E897 | 100 | 15.5 | M6 | 0.61 | 55 | 1 |
